Embedded Web Data Logger

Western Robotics has designed a compact inexpensive Embedded Web Data Logger that performs as a live web server via Ethernet connection and can be accessed from any where on the internet.  The web capability is used for remote configuration, real-time monitoring and troubleshooting.  This data logger includes essential networking features, including a 10Base-T/100Base-Tx Ethernet connection, full TCP/IP protocol stack and 256 bit AES encryption for secure communication.

Other customized solutions are also possible with various possible applications with multiple requirements such as:

Remote diagnostics

Asset tracking and replenishment

Automation and control

Power management

Personalized content delivery

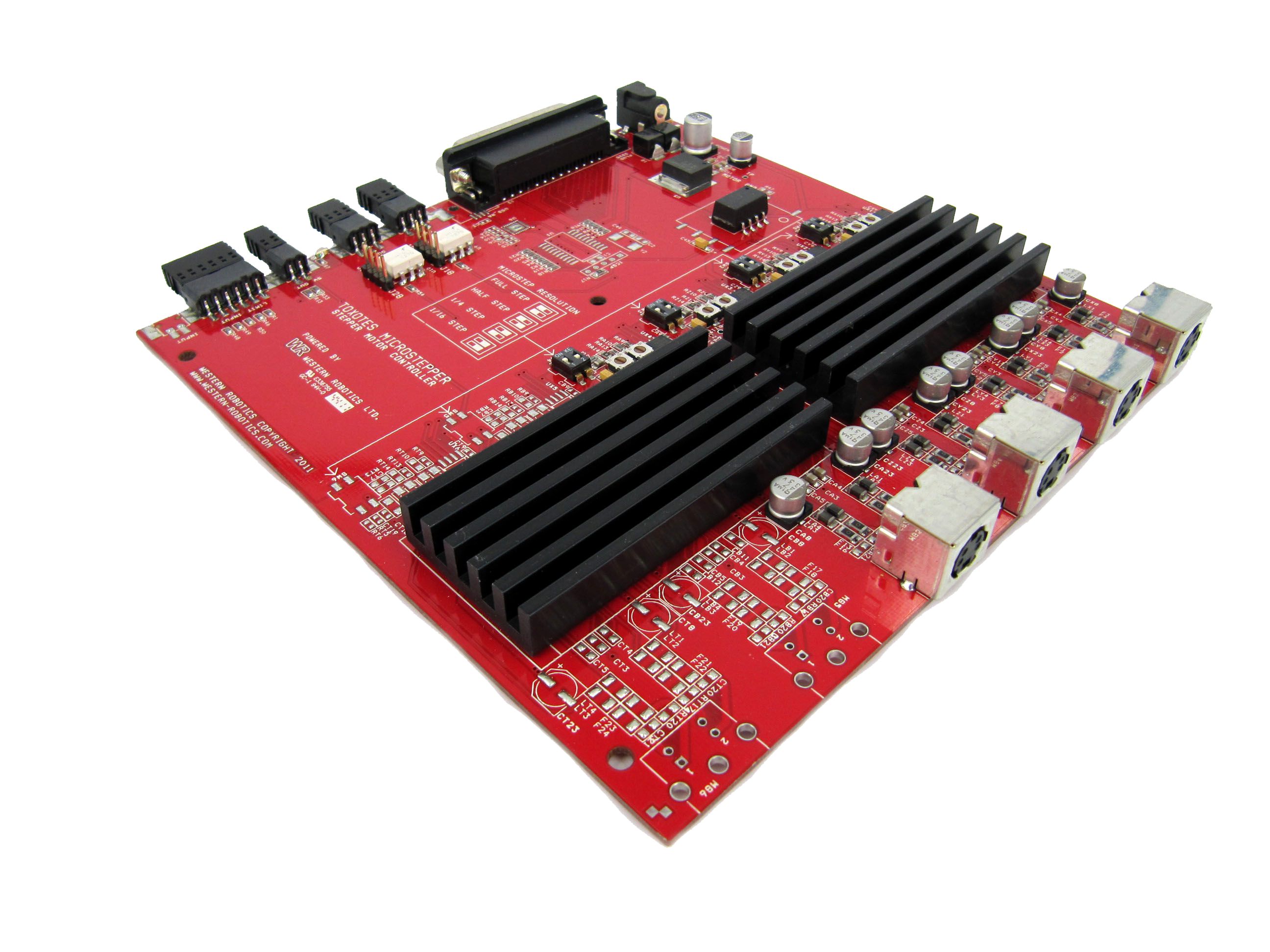

4 to 6-Axis CNC Stepper Motor Controller

Bi-Polar Stepper Motor Controller

Programmable motor step resolution of full, ½, ¼ or 1/16 step

High current capability of up to 2.5 Amperage per axis (per motor)

Wide input power range to handle 8 to 35 Volts rating stepper motors

Personal Computer (PC) interfaced via on board Parallel Port

Compatible with market available Computerized Numeric Control (CNC) PC interface software

Uses Pulse Width Modulation technology (chopper) for improved power dissipation

On board adjustable stepper motor current setting via potentiometer

On board adjustable PFD (Percent Fast Decay)

Limit switch input PC controlled via parallel port

Noise reduction filter on each input and output.

Compatible with 4, 6 and 8 wire (NEMA 17, NEMA 23 and NEMA 34) stepper motors

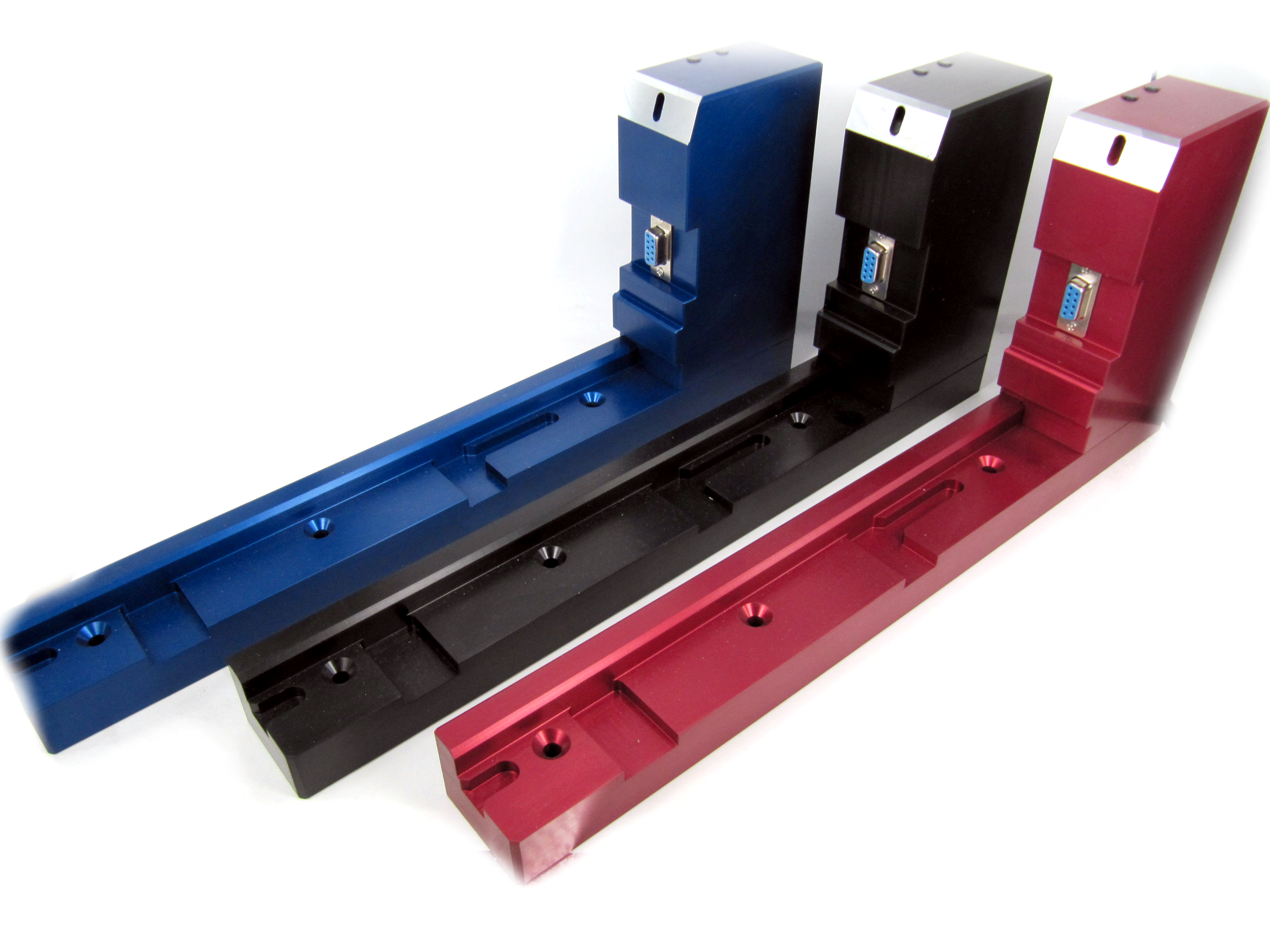

SMT Feeder Stations

Western Robotics' Surface Mount Technology (SMT) component feeder docking station is a custom dock station for pick and place machine's component feeders.  This dock station provides mobility to the machine operator to load and unload component tape reels to the machine's individual component feeders.  The SMT feeder docking station provides its own power to the to docked component feeder which allows the feeder to feed it's component tape reel forward or backwards for loading and unloading.  This allows the pick and place machine to operate without the interruption of having to load it's feeders to machine to prepare them.

Western Robotics can provide custom designed component feeder docking stations to suit the required third party pick and place machine.  For custom docking station designs please contact info@western-robotics for details.

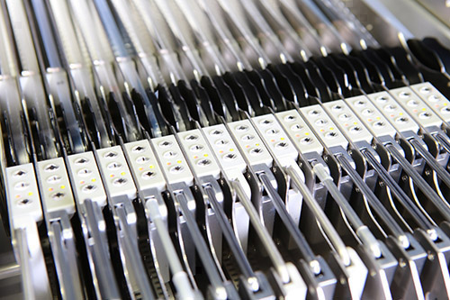

SMT Component Feeders

Western Robotics provides ongoing product development on automatic OEM compatible surface mount device component tape feeders.  We believe in providing affordable higher quality SMT component tape feeders for existing pick & place machine users.

Western Robotics is currently developing and prototyping our own OEM compatible surface mount device component tape feeders in different tape width sizes.  Our product development before initial release involves testing them with the strictest tolerances to deliver precise and repeatable results.  Please be sure to check this page regularly for future updates.
