WRL-HBECM2

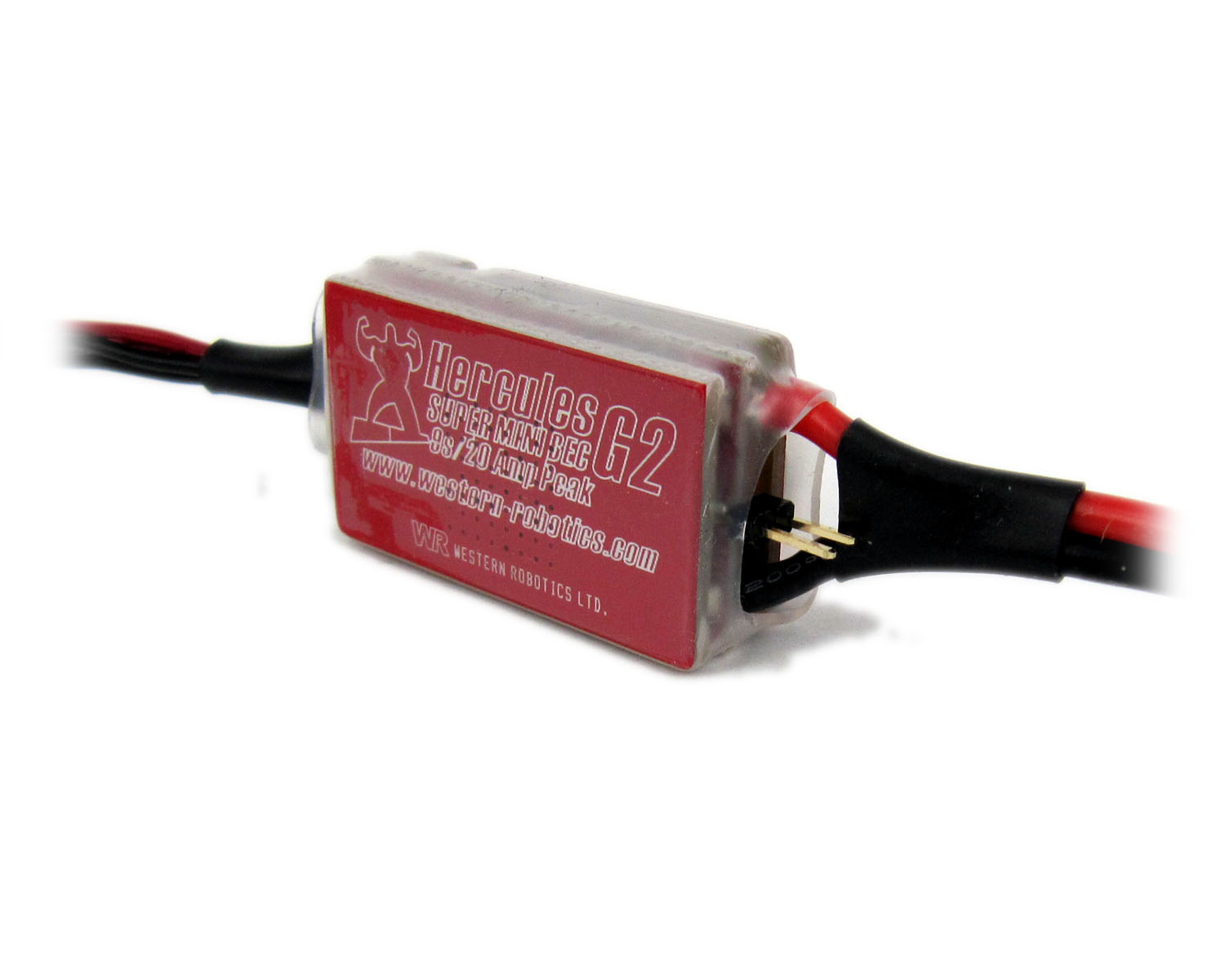

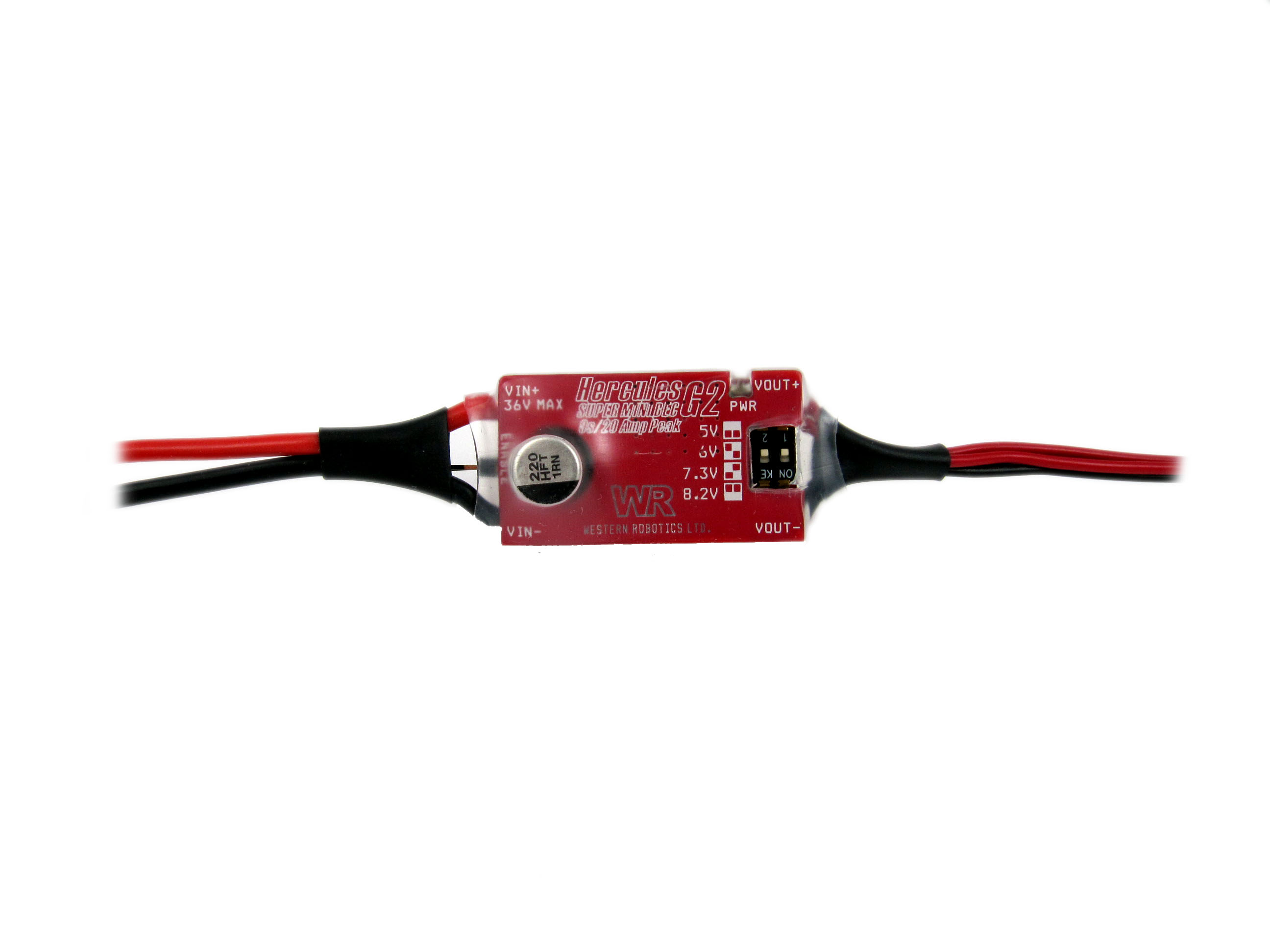

Hercules Super Mini Battery Eliminator Circuit G2

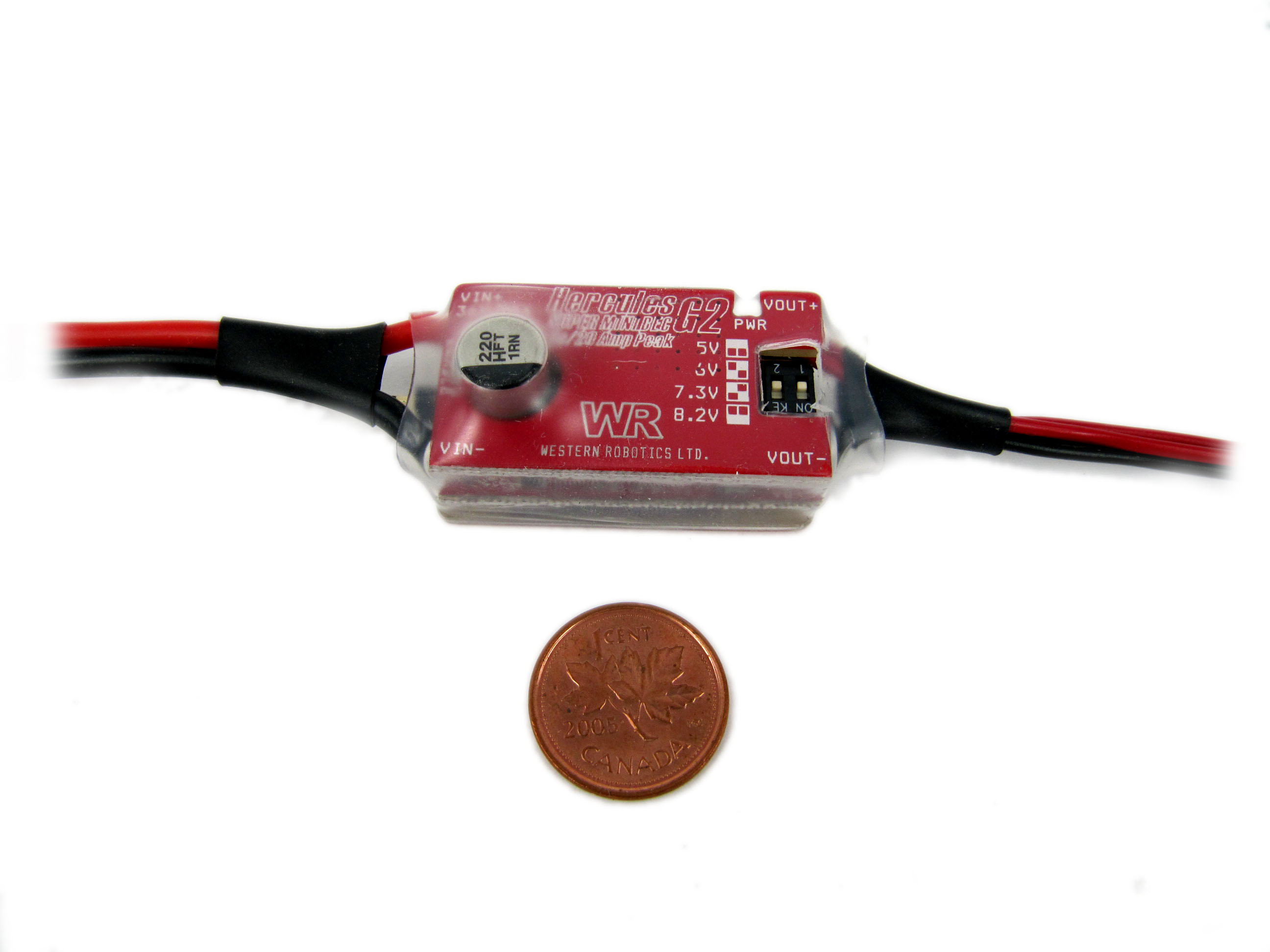

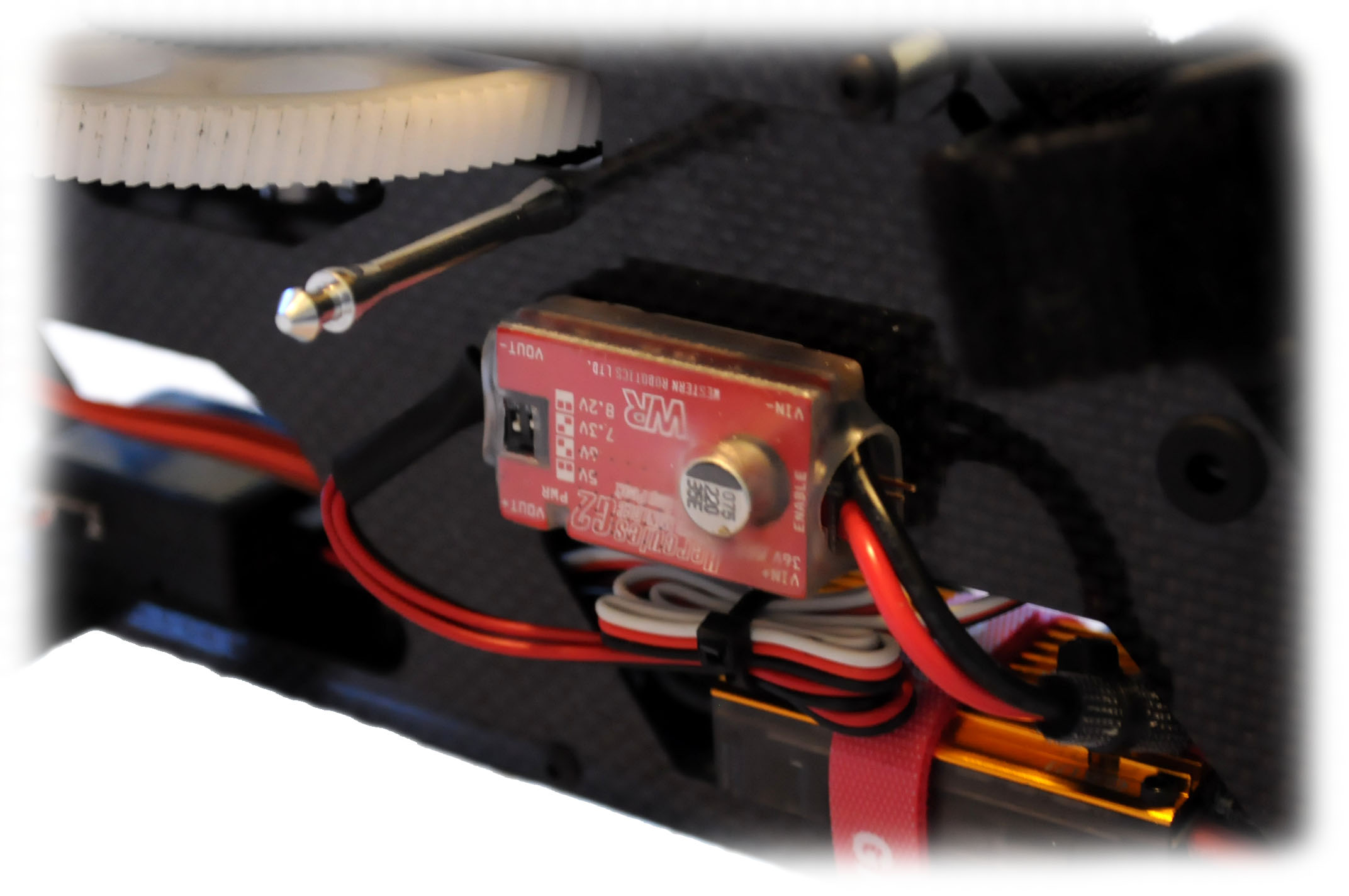

This new Battery Eliminator Circuit is the first most compact and robust ever designed and made that can withstand outstanding high current loads of 20 Amp Peak, 10 Amps continuous with voltage source of up to 8s LiPo battery (36V Max). The Hercules Super Mini Battery Eliminator Circuit G2 is a glitch free high efficiency, high power switching voltage regulator designed to work with all popular brands receivers and servos. It provides safe and consistent power to your R/C receiver and servo(s) that eliminates the need for a separate battery source. The Hercules Super Mini G2 has a new boost mode feature that provides protection against system brown outs as it maintains the selected regulated voltage even if the input voltage (4.5V Min.) drops below the output voltage. The Hercules Super Mini G2 is ideal for today’s more demanding R/C aircrafts equipped with digital servos that require even higher current demands without sacrificing with additional weight and size

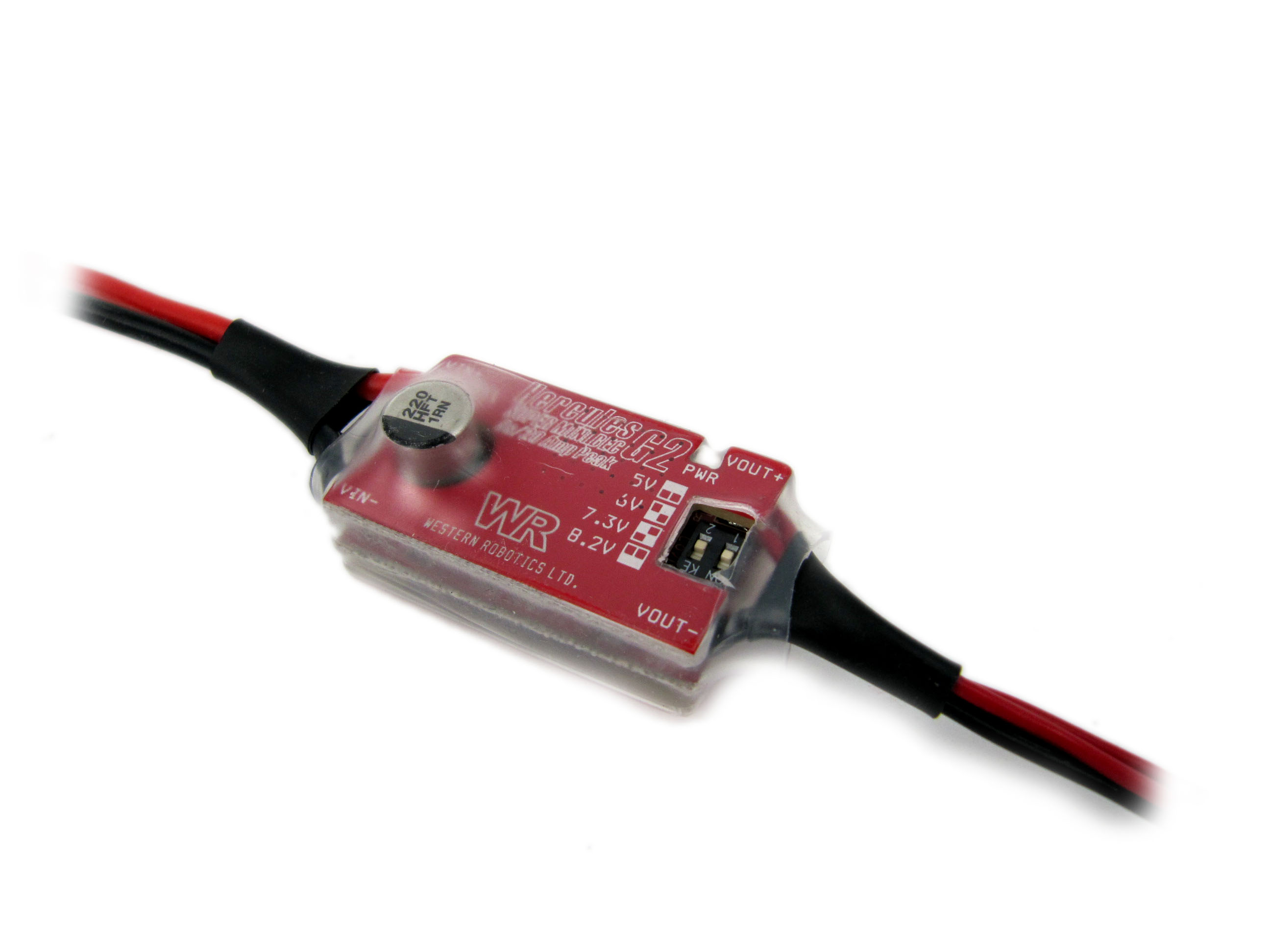

Super compact high efficiency 5.3V, 6V, 7.3V and 8.2V selectable voltage regulator.
New boost mode feature protects against system brown outs. Maintains regulated voltage even if input voltage drops below the regulated voltage
Wide input voltage range from 4.5V to 36V (3-8 LiPo Cells)
High current capability of 10 Amps continuous 20 Amps peak with proper ventilation. In Boost mode, 4 Amp continuous maximum\

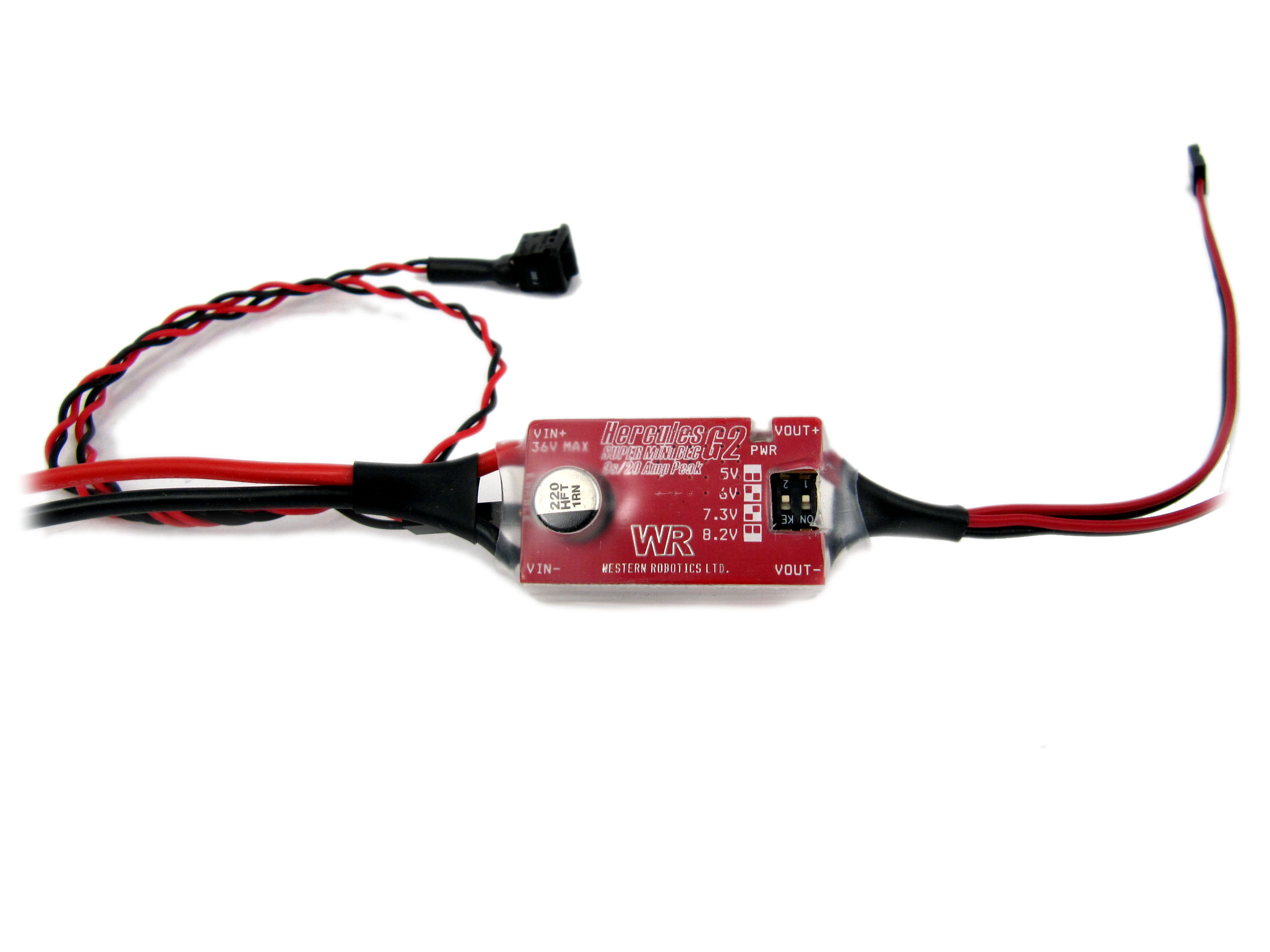

Shut Down enable pin for remote shut down. Optional shut down switch sold separately
Protects against Current overload and Reverse Battery connections
LED status indicator gives visual feedback
